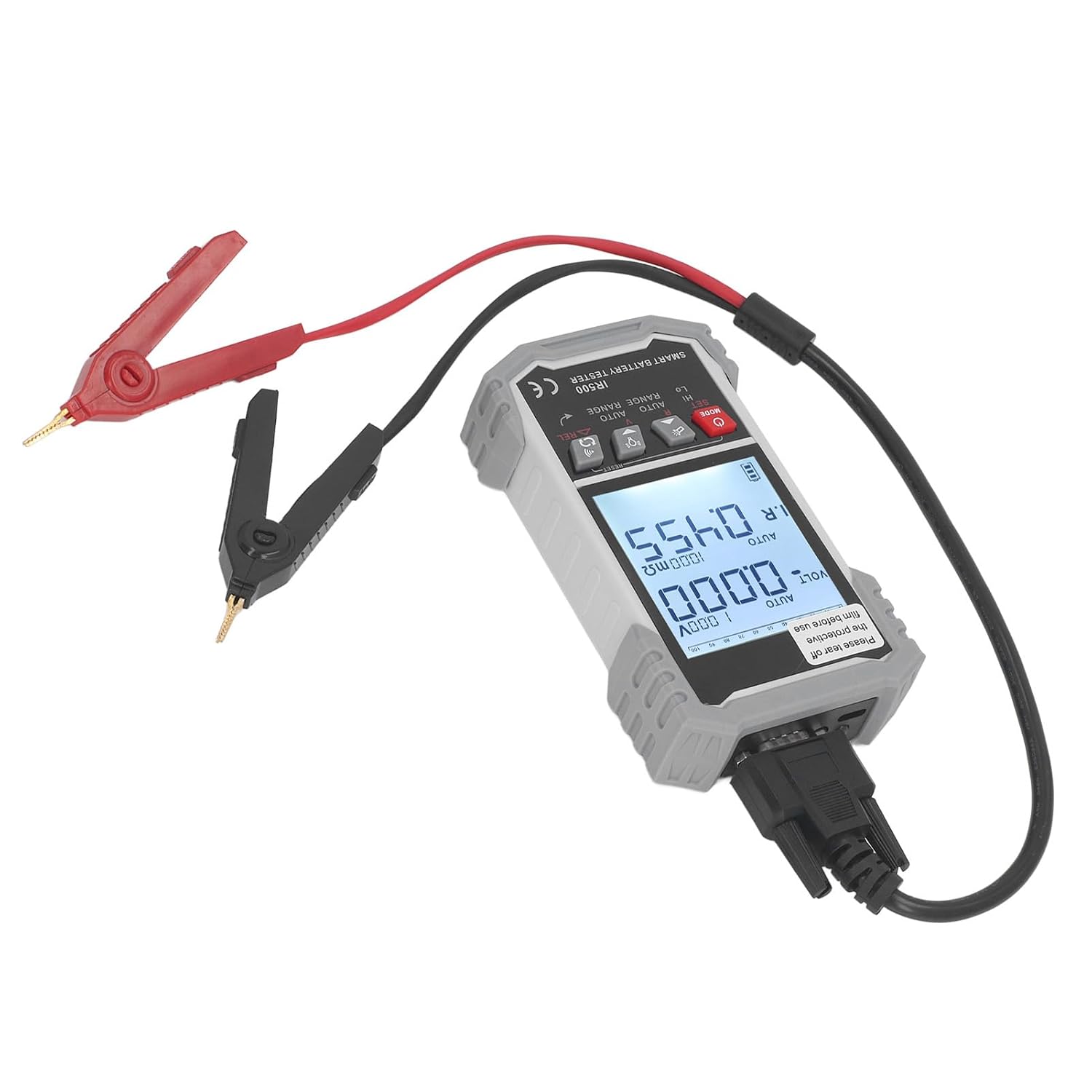

Battery Internal Tester for Car Automotive Lithium Batteries, TN HD LCD Screen, Voltage Range 0.00V ~ ±120V

Specification: Item Type: Battery Internal Tester Product Model: IR500 Screen: 3.2in TN HD LCD screen, automatic shutdown function Battery Range: battery, lithium battery, battery Voltage Range: 0.00V~±120V Internal Range: 0.000mΩ~500Ω Maximum Input Voltage: DC120V(do not need to distinguish between positive and negative electrodes), cannot input AC Current Range: 50mA~50uA AC Measurement Speed: 3 Times/second Measurement Frequency: 1KHz Voltage Range Test: Automatic or manual selection Range Test: Automatic or manual selection Test Method: 4 line Kelvin testing method User Self calibration: Supported Recovery: Supported Lighting Function: Supported Battery: 1 x 1250mAh rechargeable lithium battery, maximum working time 10 hours How to Use: Open the package and take out the product to start using. Package List: 1 x Main Unit 1 x USB Cable 2 x User Manual

• [ Portable] With and abs , this tester is sturdy, featuring a backlit display, led flashlight, and long-lasting lithium battery.
• [Versatile Measurement] Measure battery internal and voltage simultaneously with a wide range of 0.00v~±120v and 0.000mω~500ω, covering all battery types up to 3000ah.
• [Accurate] Utilizing advanced technology, this tester ensures precise readings without the need to disconnect, offering improved test accuracy and stability.
• [Large Hd Lcd Screen] Battery internal tester features a 3.2in hd screen for easy reading, with automatic and voltage range switching.
• [User-friendly Design] Easy to use with plug and play functionality, universal interface design, and battery screening function for convenient battery classification.
